Vibration Meter

Home / Our Products / Vibration Meter

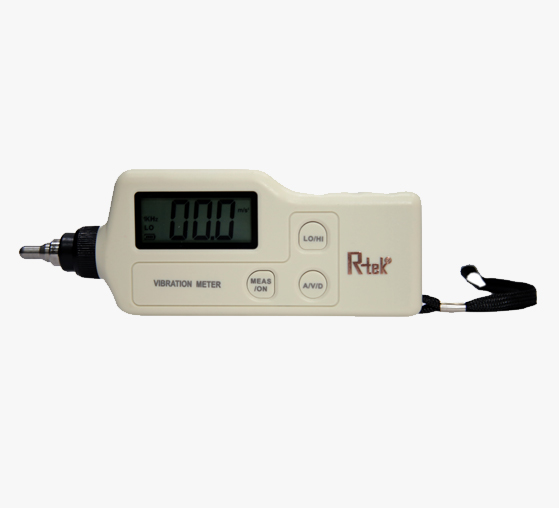

Vibration Meter RT-63A

Used for measuring periodic motion, to cheakthe imbalance and deflecting of moving machinery.Specifically designed for present measuring various mechanical vibration. So as to provide the data for the quality control, run time and equipment unkeep. Use the high-performance acceleration meter, realize the repetitiveness and accurate measurement. It has the function oftesting axle bearing situation.

Specification

	RT-63A
Measurement Range	Acceleration: 0.1~199.9m/s2 Velocity: 0.1~199.9m/s Displacement: 0.001-1.999mm P.P
Accuracy	+5%
Vibration Pickup	Piezoelectric ceramic accelerometer(shear-type)
Measurement Frequency Rang of Acceleration	10Hz-1KHz(LO)1KHz-15KHz( (HI)
Measurement Frequency Rang of Velocity	10Hz-1KHz(LO)
Measurement Frequency Rang of Displacement	10Hz-1KHz(LO)
LCD Display	3.5 digits display
Single Output	AC output 2V peak(display full scale) load impedance 10K or more earphones can be connected
Max Hold Function
Temperature selection
Operation Condition Display
Operation Condition	0~40°C
Unit Size	1836730mm,
Standard Quantity Per Cartol	12PCS
Standard Carton Size	51.740.532CM
Standard Carton Gross Weight	12.8KG,
Power	9V Battery

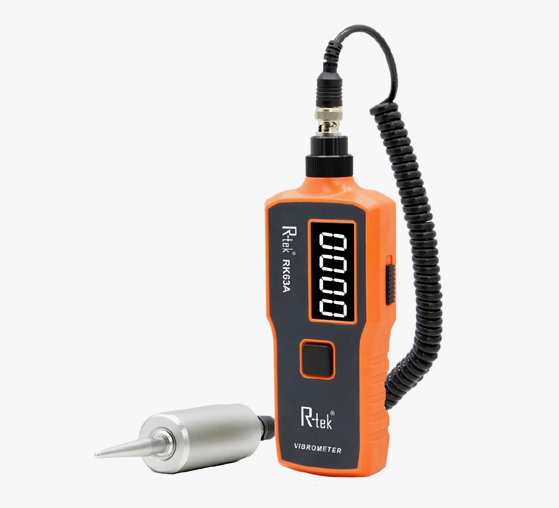

Vibration Meter RK-63A

Measurement range:
- Vibration displacement: 0~1000 um (peak to peak)
- Velocity: 0~71mm/s (RMS)
Frequency response and error:
- Vibration displacement (P-P): 12~200Hz, <±10%
- Velocity (RMS): 12~500Hz, <±10%
Linearity and Accuracy:
- Vibration (P-P): 0~20 µm, =±10% >20 µm, <±5%
- Velocity: 0-2.0mm/s, ±10% >2. Omm/s, =±5%
Environmental:
- Environment temperature: 0~40^oC
- Relative humidity: < 80%
- Atmospheric pressure: 75~106kpa
Overall dimensions:
- 185 (H) x 68 (W) x 30 (D) mm
Weight:
- 480g (including battery)
