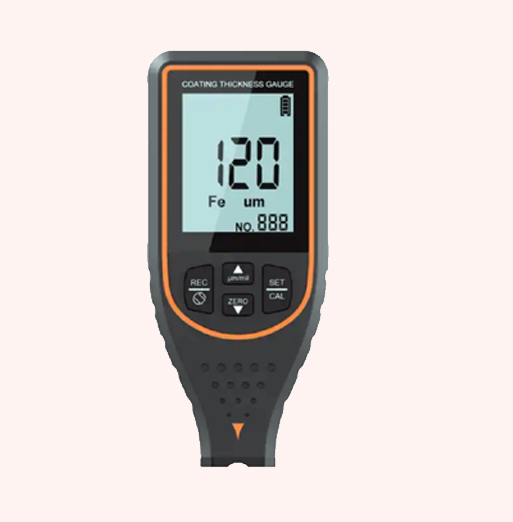

RK - 770 Digital Coating Thickness Gauge
We are among the reputed names in the industry. We are successfully meeting the requirements of our clients by offering the best quality range of Coating Thickness Gauge. The offered Coating Thickness Gauge are manufactured as per a standard design using premium quality materials and sophisticated technology. Offering accurate results, these Coating Thickness Gauge are highly appreciated by the customers. We make these Coating Thickness Gauge available at standard market prices.
Specification
  • Measuring:
    - Magnetic material 0-1700µm
    - Nonmagnetic material 0-1700µm
  • Resolution :
    - O.lµm@ (0-99.9µm)
    - lµm@ (100-1700µm)
  • Indication error:
    - (2+2%*H)µm @ (0-500µm)
    - +(2.5% "H) µm @ (500~1700µm)
  • Min measuring_area :
    - Magnetic material 25x25mm,
    - Non magnetic material 25x25mm
  • Min curvature: Convexity 5mm; concave 30mm
  • Min substrate thickness:
    - Magnetic material 0.2mm;
    - Non magnetic material0.05mm
  • Screen: Segment screen
  • Memory: 30 sets
  • Battery specification : 2x1.5V AAA
  • Working temp and humidity: O°C~50°C, 10%~80%RH
  • Storage temp and humidity : -10°C~60°C, 10%-70%RH
  • Dimension: 120x52x27mm
